Circulation Pump - Hot Spring & Caldera - E5 - Universal Voltage
Non-returnable
- Quantity
Product Details

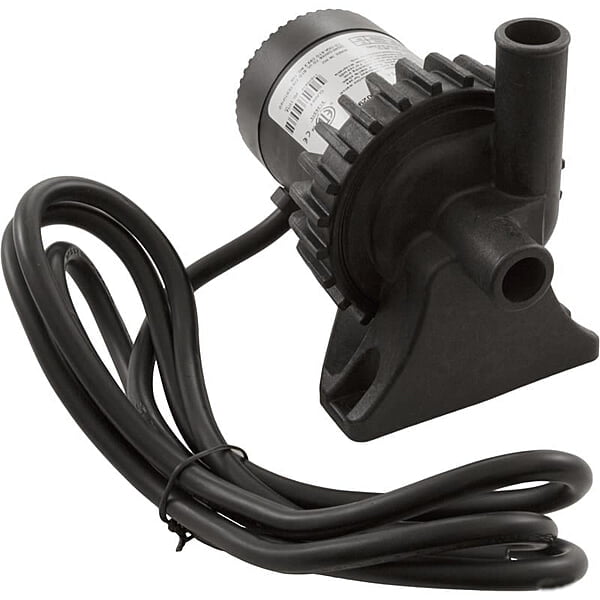

Laing E5 Circulation Pump is found in many low flow applications in spa brands such as Hot Spring, Caldera & Tiger River.
Specifications:
- Horsepower: 1/40
- Voltage: 115v / 230v
- Amps: 0.9A / 0.5
- Frame Size: Specialty / Canned Spherical
- HZ Rating: 50HZ / 60HZ
- Intake Size: 3/4" Barb
- Discharge Size: 3/4" Barb
- Flow Rate: Max 10 GPM
- Cord Type: 3 wire
- Cord Length: 4' (Bare Wire Ends)
- Single Speed
- Includes Pump Cord
- Max Head: 11'
- Watts: 45 Max
Product Features:
- Canned Spherical Motor Type
- Automatic Overload Protection
- Low In-Rush Current
- Dry Run Protection
- Close coupled, space saving design provides easy installation.
- Pump can be mounted horizontally or vertically with motor end down.
- Whisper quiet, less than 40 db.
- One Year Warranty
Can Replace the Following Pump Models:
74427 (Watkins), 10-0102-K (Hydro-Quip), E5-NCHNNNN3W-10 (Laing)
